IsoMax Installation GuideInstallation Guide

IsoMax Clip System

Resilient Isolation Acoustic System

Performance - 56dB Clip Length - 98mm Clip Depth - 25mm Channel Length - 1.8m

From: £4.29

Quality Rating

Durability Rating

IsoMax Clip is a cost effective, high performance noise control solution.

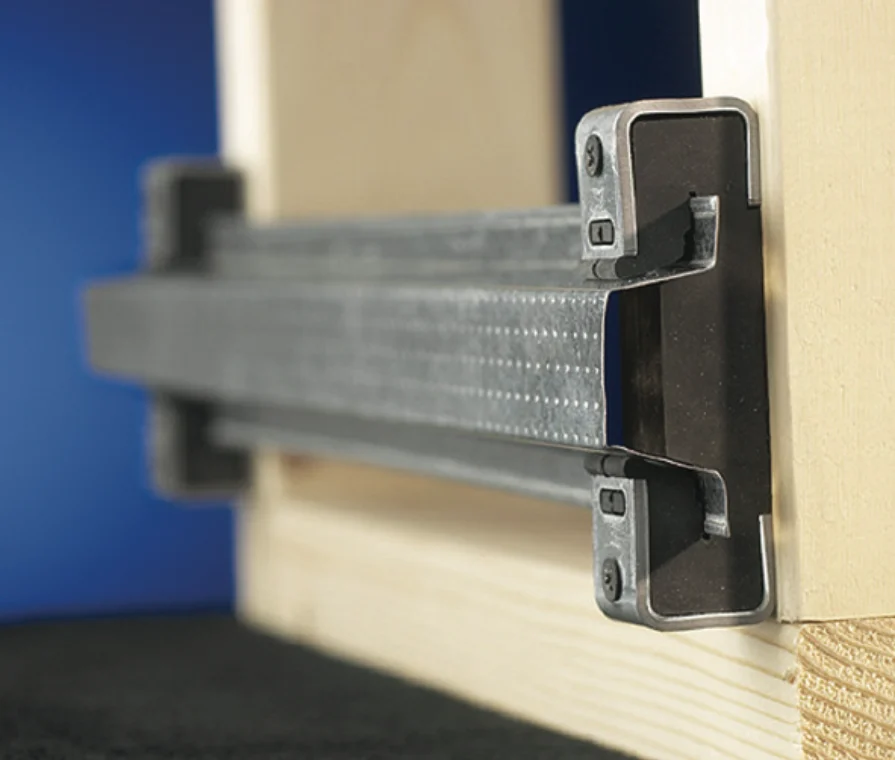

The IsoMax Clip System is a high performing, space conserving sound reduction system that has been developed by CMS Danskin, designed to eliminate “direct contact”. IsoMax are intelligently designed clips that are attached to ceiling or wall joists; because of their unique design and use of furring channels, IsoMax isolates plasterboard or drywall from nonisolated structures.

How IsoMax Sound Isolation Clips Works

The IsoMax Clip System has been designed to act as shock absorbers in structures. When the sound hits the decoupled layer of plasterboard it will begin to vibrate, however since the plasterboard is isolated it will absorb most of the vibrations, meaning they are unable to reach the main structure.

Features & Benefits

  • Offers a robust and higher performing alternative to traditional wall and ceiling isolation methods
  • Outperforms standard resilient bar construction by up to 7dB
  • Withstands greater loads than standard systems to provide peace of mind for developers and dwellers
  • Reduces the risk of error at installation stage, as screws cannot be inadvertently attached to the stuff or joist through the resilient area
  • Works as a space saving solution for either existing or new wall constructions, with minimal encroachment into living space
  • For situations where fire protection is a consideration, fire rated wall and ceiling systems are also available
  • Offer ones of the most cost effective methods available to achieve superior noise controls in walls and ceilings whilst using standard materials

Installation

Ensure that any plasterboard or dry wall is removed, exposing the joists otherwise the drywall could impede the performance of the IsoMax clips.

When you begin attaching the clips to the joist ensure that they are held in place with one screw, do not fix using two otherwise it may cause complications whilst attaching the furring channels.

Ensure that between each column that there is no more than 1200mm, anything larger than this will impede the structural integrity of the plasterboards. (Between each IsoMax clip there should be no more than 600mm).

Once the clips are in place begin attaching the furring channels. If the channels are not long enough to cover the full width of the room try overlapping the furring channels (there should be a 150mm overlap between each furring channel).

The furring channels should not sit flush against the wall. Once the furring channels have been attached to each clip you can begin fixing the clips in place permanently with a second screw.

Product Specification

Additional Information

room

Bathroom, Bedroom, Commercial, Dining, Hall, Kitchen, Lounge, Hallway, Living Room, Office, Utility Room

Max Load Per Clip

22.5kg

Use For

Internal Walls and Ceilings

Part

IsoMax Channel (1.8m), IsoMax Clip

Delivery

Delivery Charges

Underlay

Standard (3 Days) Next Day
£0 – £199 ex VAT £15 £40
£200+ ex VAT FREE £25

Soundproofing, Laminate, Real Wood & Carpet Tiles

Standard (3 Days)
£0 – £199 ex VAT £30
£200+ ex VAT FREE

Important Information

    • Standard delivery is 3-5 working days
    • Order with multiple product types will have compound delivery costs, please call for for more information.
    • Due to the bulky nature of certain products and insurance / liability issues, the couriers will only deliver to kerbside. (they cannot be expected to carry goods up to your flat for example)
    • The cost for soundproofing are higher as these must be delivered in pallets which is a higher cost.
    • There is a 40% restocking fee on all soundproofing products.

Underlay-Delivery-Info-RHS (1)Ordering

We aim to dispatch all orders between 3 to 5 working days. As your order is now with our courier network it is subject to adverse weather conditions and road networks, so please be patient.

We deliver from Monday to Friday between 9am and 6pm. We assume that access is available for vehicles for all deliveries and for HGV’S for larger orders. Deliveries are door-to-door and the driver can not be expected to take them inside the property. We request that someone is available to sign for the goods upon delivery.

It is imperative that you the customer are available to sign for the goods upon delivery. Please ensure that your goods are inspected, prior to signature for damage. Once the goods have been signed for in “Good Condition” the carrier and Flooring Warehouse Direct will reject any claim for damages or compensation. Any damage or short delivery should be reported to us within 24 hours of receipt of delivery.

We highly recommend that when booking fitters, more time is allowed for delivery as orders are subject to such things as credit checks, stock availability and delivery conditions which can mean the order may be delayed. If you have any questions, please contact us before making an order.

Returns

If you decide to return any good we recommend you do so within 14 days of receipt. Sadly, we have to exclude any products that have been altered in any way (cut-to-size, made-to-measure etc.)

If you do send the goods back for any reason, please let us know so we can send you our warehouse address. Upon receipt of the goods appropriate credit will be issued.

Is this right for me?

The list below details common noises and their average decibel (dB) level:

Decible (Unit)
Noise Type
0
Low threshold of hearing - the softest sound you can hear
10
Leaves rustling in the breeze / Quiet whisper
20
Average whisper
20 - 50
Quiet conversation
40 - 45
Hotel lobby conversation
50
Rainfall
50 - 65
Loud(ish) conversation
65 - 70
Moderate traffic / Hair dryer
65 - 90
Train
75 - 80
Factory (medium) / Washing machine
90
Heavy traffic / Petrol lawn mower / Busy city
90 - 100
Thunder / Walkman / Traktor
100
Boom box on high volume / Chain saw / Leaf blower
110
Shouting / Symphony concert
115
Rock concert
120
Ambulance siren
130
Threshold of pain / Firework display / Gunshot
140
Airplane takeoff from short distance away
140 - 190
Space rocket takeoff
170
Shotgun
